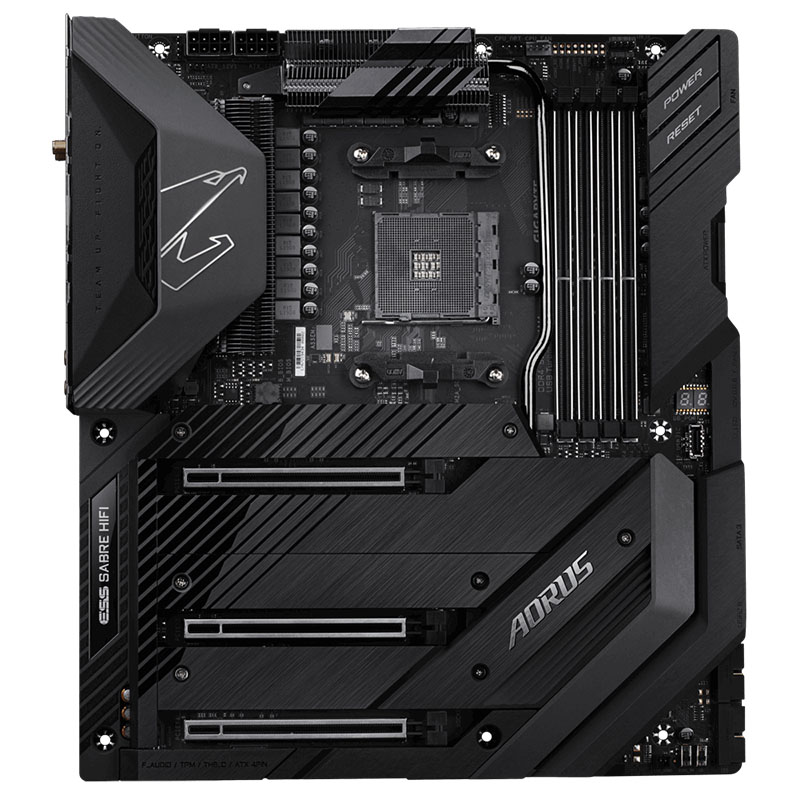

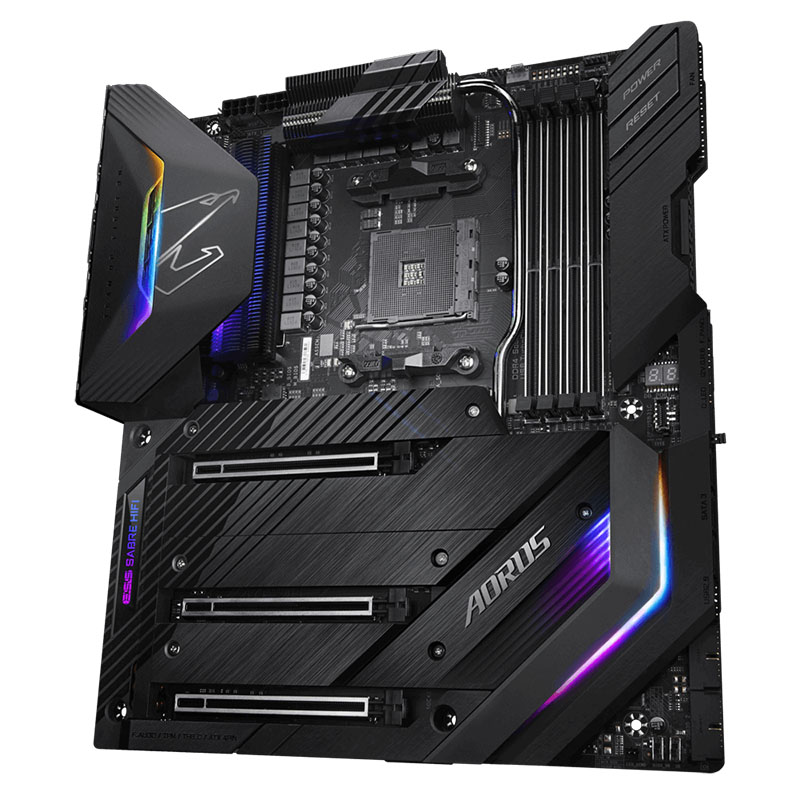

GIGABYTE X570 AORUS EXTREME Mainboard

(Please refer “CPU Support List” for more information.)

1. 3rd Generation AMD Ryzen™ processors:
   Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
   Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
   * ECC is only supported with AMD Ryzen™ PRO-series CPU.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

* For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

1. 3rd Generation AMD Ryzen™ processors:
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
2. 2nd Generation AMD Ryzen™ processors:
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.
3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the Chipset (PCIEX4):

1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4
   * For 3rd Generation AMD Ryzen™ processors only.

1. 3rd Generation AMD Ryzen™ processors:
   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
   1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
   * For 3rd Generation AMD Ryzen™ processors only.
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
   * For 3rd Generation AMD Ryzen™ processors only.
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, and RAID 10
   * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

1. 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
2. 1 x Intel^® GbE LAN phy (10/100/1000 Mbit) (LAN2)
3. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
4. BLUETOOTH 5.0
5. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

1. Realtek^® ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS SABRE9218 DAC chip
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

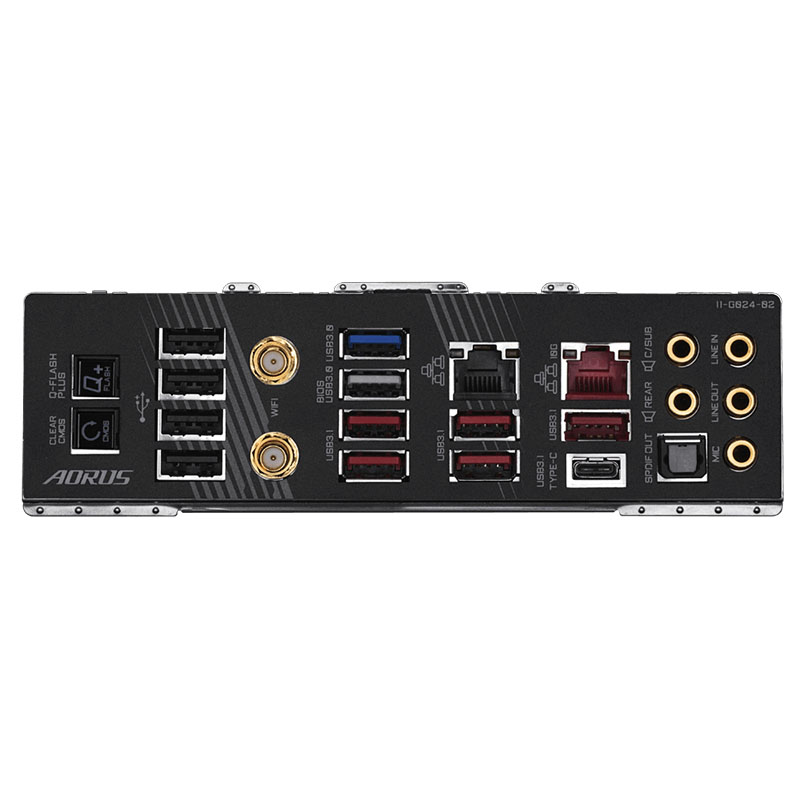

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
5. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
   * For 3rd Generation AMD Ryzen™ processors only.
6. 3 x USB 3.2 Gen 2 Type-A ports (red)
7. 2 x USB 3.2 Gen 1 ports
8. 4 x USB 2.0/1.1 ports
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x OC PEG power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 1 x USB 2.0/1.1 header
17. 1 x noise detection header
18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
19. 2 x temperature sensor headers
20. 1 x power button
21. 1 x reset button
22. 2 x BIOS switches
23. Voltage Measurement Points
