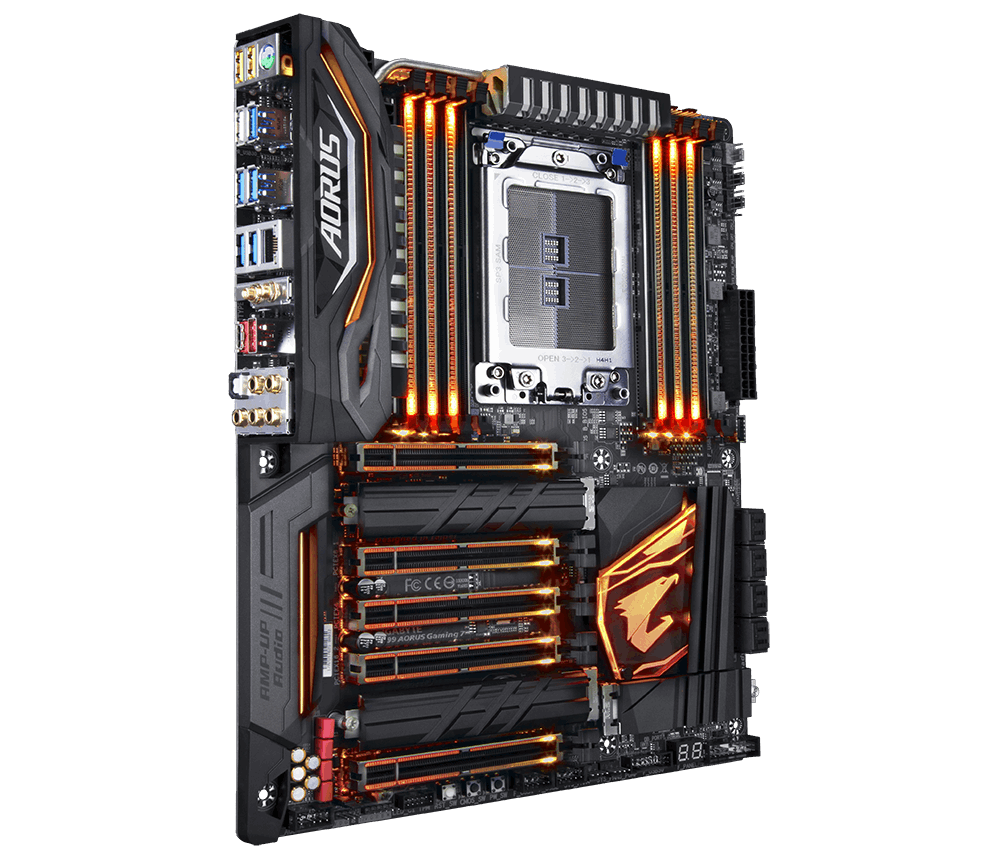

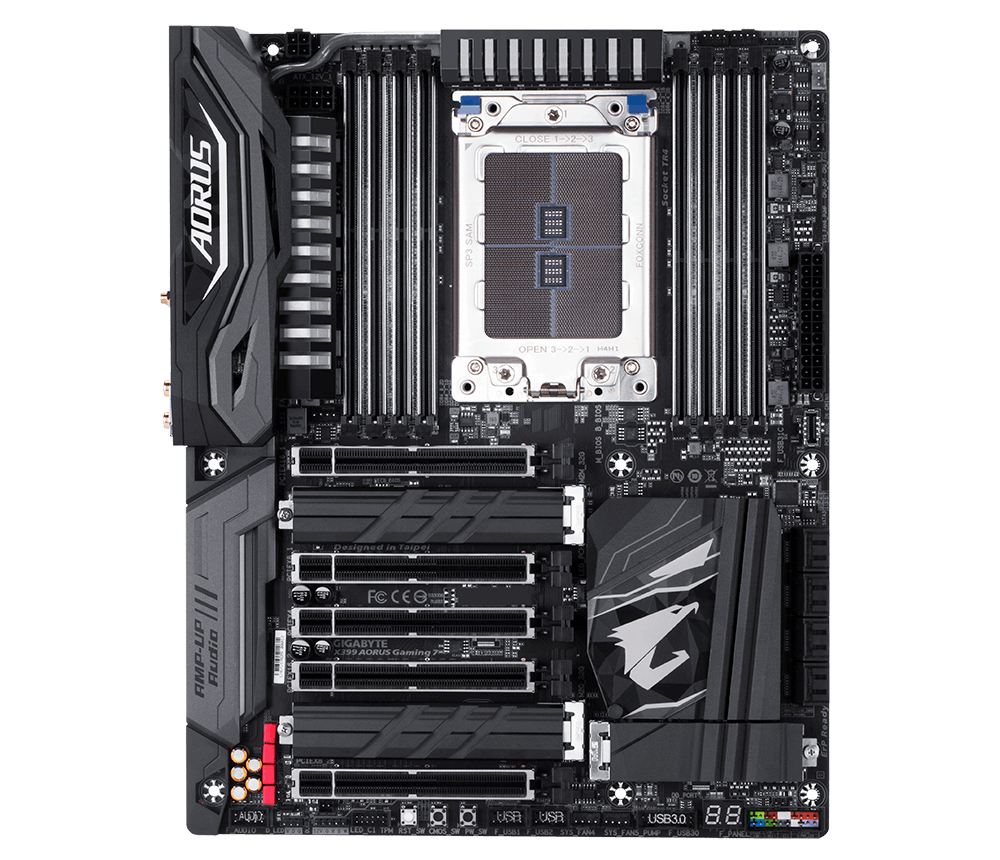

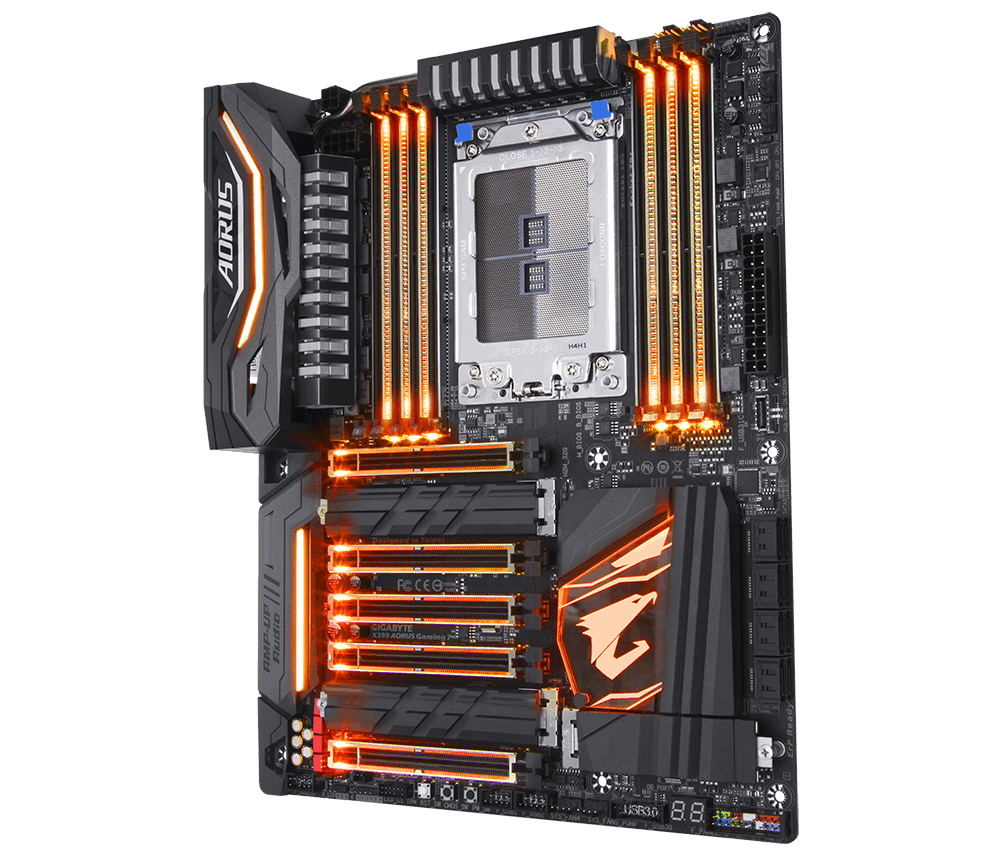

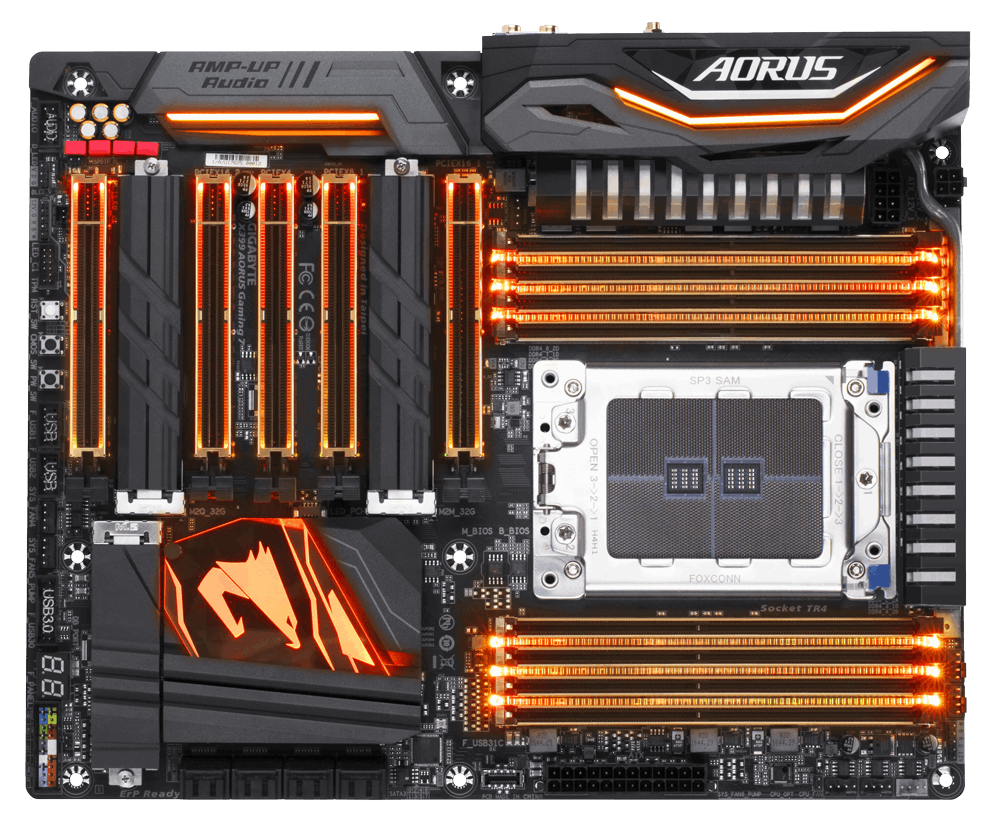

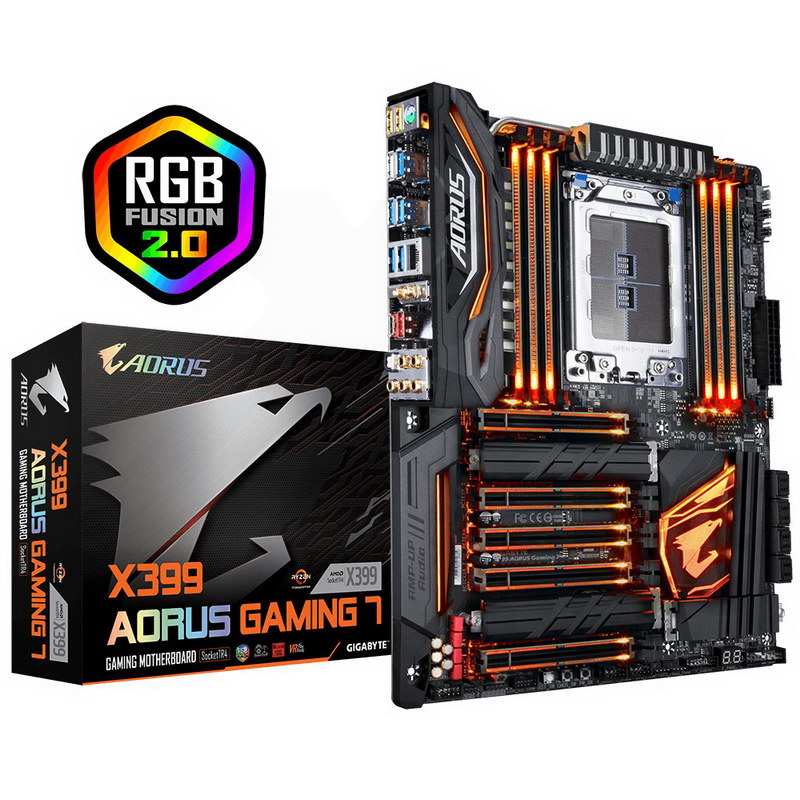

GIGABYTE X399 AORUS Gaming 7 Mainboard

1. 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2. Quad channel memory architecture
3. Support for DDR4 3600+(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
2. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
   (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   (The PCIEX4 slot conforms to PCI Express 2.0 standard.)

1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3. 8 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, and RAID 10

1. Realtek^® ALC1220 codec
2. Support for Sound BlasterX 720°
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. 8 x USB 3.1 Gen 1 ports on the back panel

Chipset+ASMedia^® USB 3.1 Gen 2 Controller:

1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header

Chipset:

1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
3. 2 x USB 3.1 Gen 1 ports available through the internal USB header
4. 4 x USB 2.0/1.1 ports available through the internal USB headers

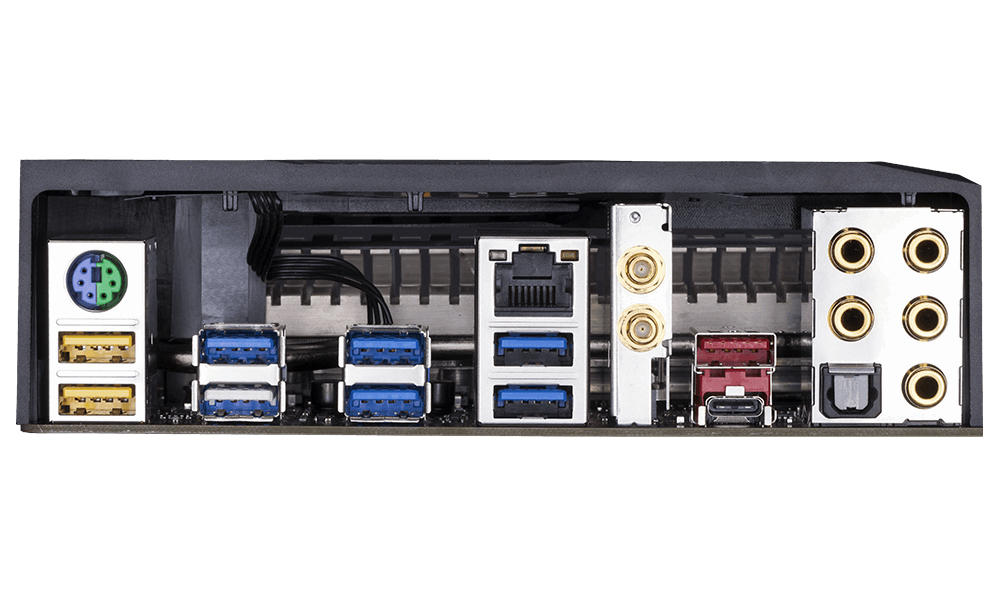

1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3. 1 x USB 3.1 Gen 2 Type-A port (red)
4. 8 x USB 3.1 Gen 1 ports
5. 1 x RJ-45 port
6. 2 x MMCX antenna connectors (2T2R)
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 1 x digital LED strip header
9. 1 x digital LED strip power select jumper
10. 2 x RGB (RGBW) LED strip extension cable headers
11. 3 x M.2 Socket 3 connectors
12. 8 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ header with USB 3.1 Gen 2 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Trusted Platform Module (TPM) header
20. 1 x power button
21. 1 x reset button
22. 1 x Clear CMOS button
23. 2 x temperature sensor headers
24. 1 x Clear CMOS jumper

1. ATX Form Factor; 30.5cm x 24.4cm
