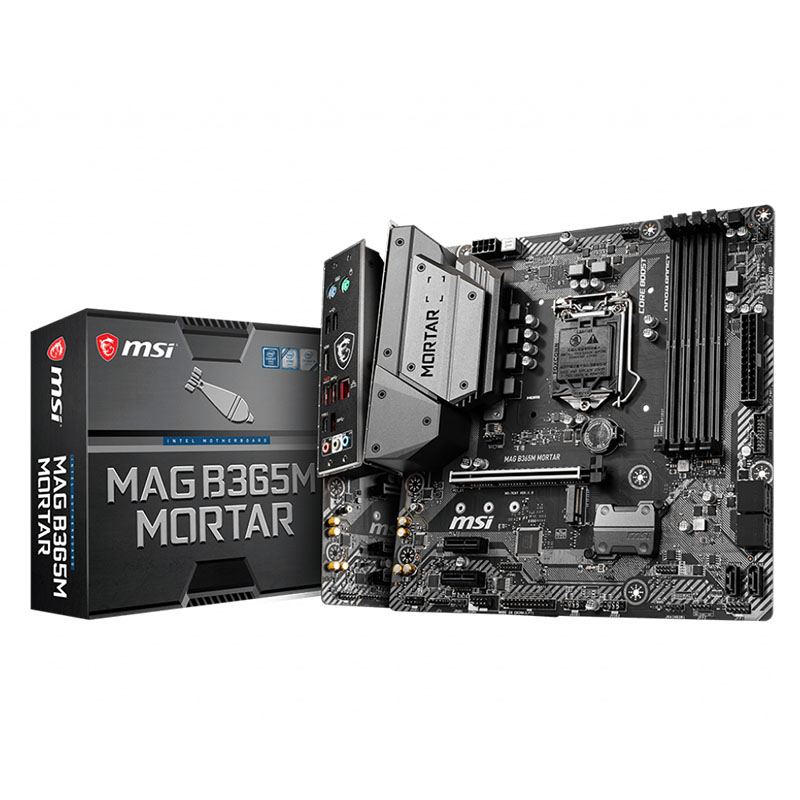

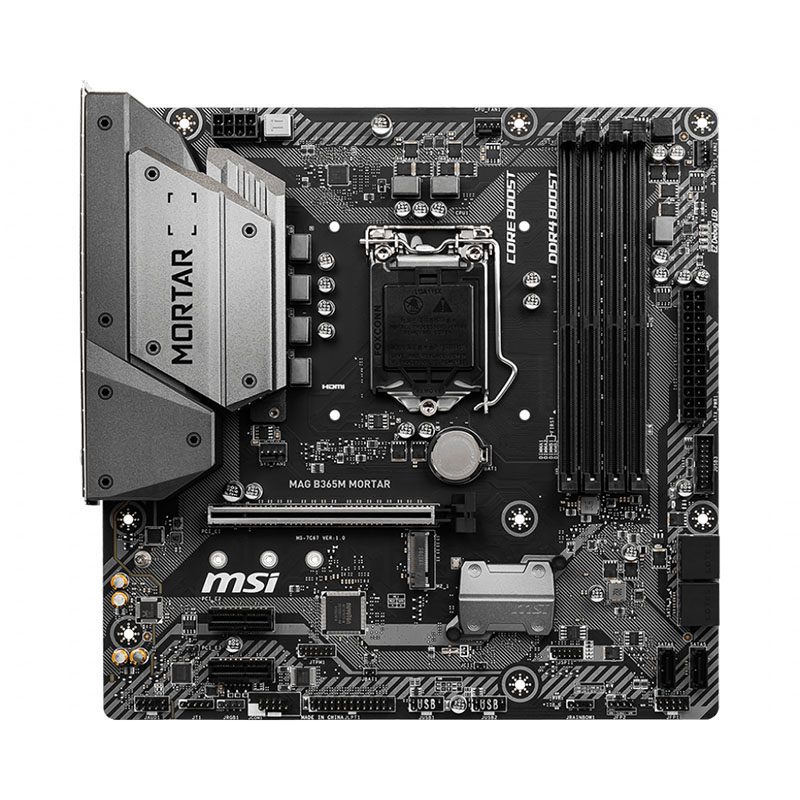

MSI MAG B365M MORTAR Mainboard

• 4 x DDR4 memory slots, support up to 64GB
• Supports DDR4 2666/ 2400/ 2133 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Intel^® B365 Chipset

• 6 x SATA 6Gb/s ports¹
• 1 x M.2 slots (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • Intel^® Optane™ Memory Ready²

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

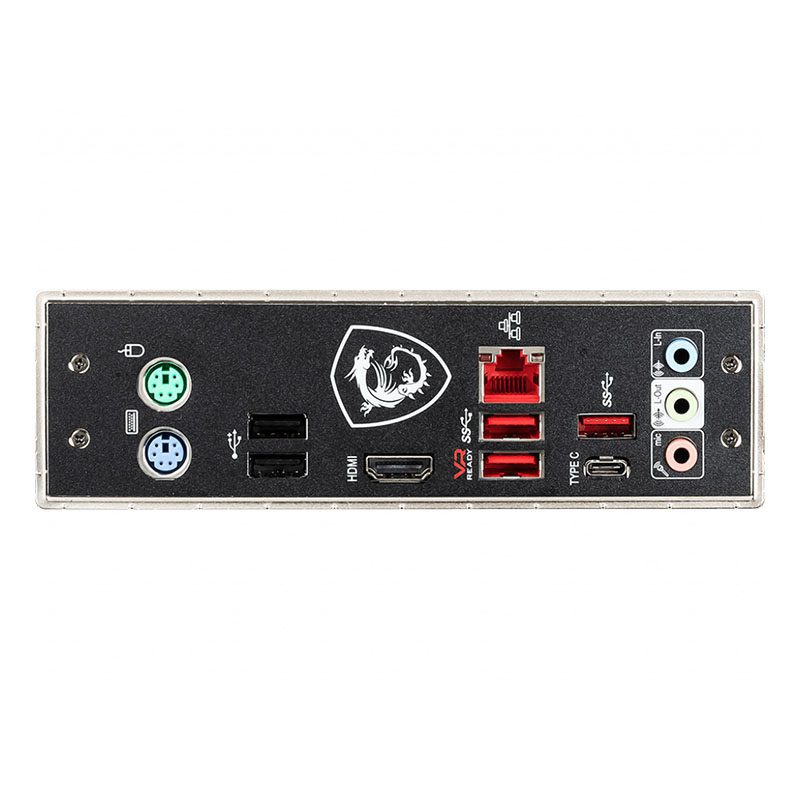

1. Mouse Port
2. Intel GAMING LAN
3. HD Audio Connectors
4. Keyboard Port
5. USB 2.0 ports
6. HDMI Port
7. USB 3.1 Gen1 Type-A ports
8. USB 3.1 Gen1 Type-A+C ports

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 1 x 3-pin RAINBOW LED connector
• 1 x 4-pin RGB LED connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
• Micro-ATX Form Factor
