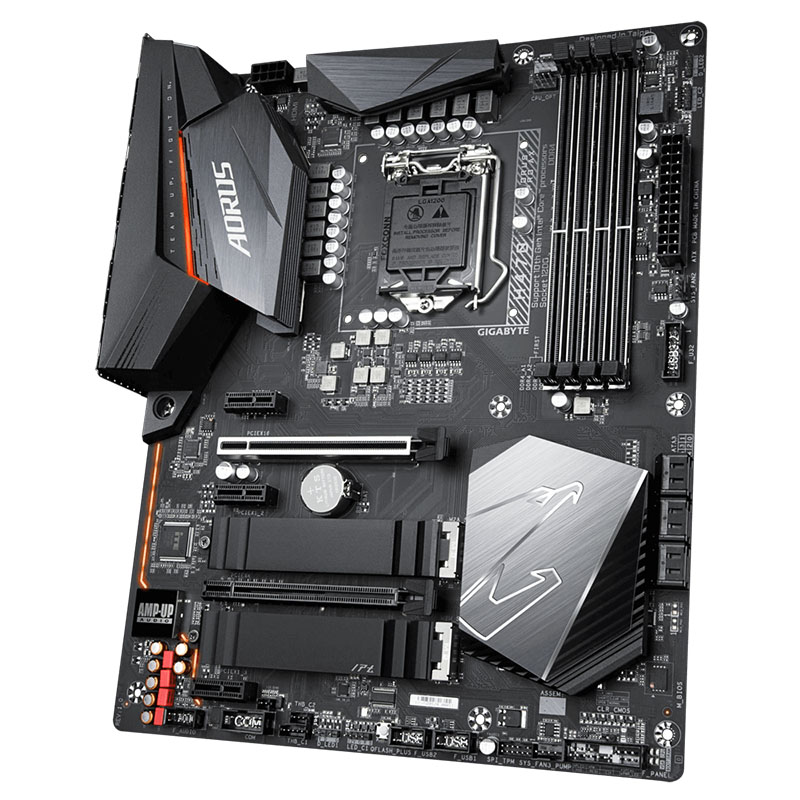

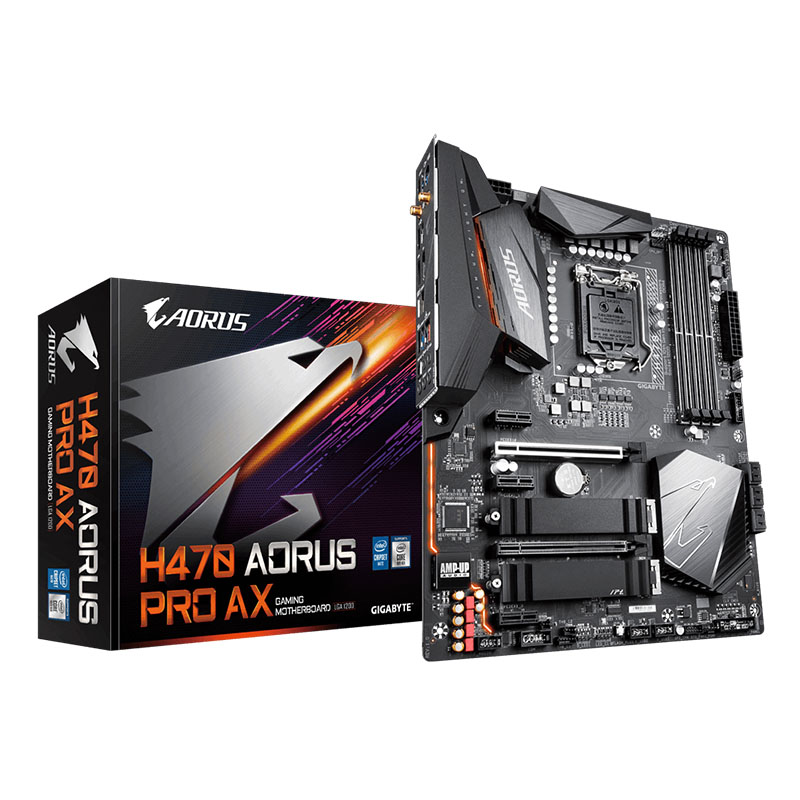

GIGABYTE H470 AORUS PRO AX Mainboard

4.850.000 ₫

Intel® H470 AORUS Motherboard with Direct 11+1 Phases Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, USB 3.2 Gen2 Type-C™ ,RGB FUSION 2.0
  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 11 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarged Surface Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen 2 Type-C™ Support
  • ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card

Còn hàng

Thông tin cấu hình

CPU hỗ trợ
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset Intel® H470 Express Chipset
Bộ nhớ trong
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Hiển thị đồ họa Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 512 MB
Hỗ trợ Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Khe mở rộng
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 3 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Chuẩn lưu trữ
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
Mạng Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel® Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Âm Thanh
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out

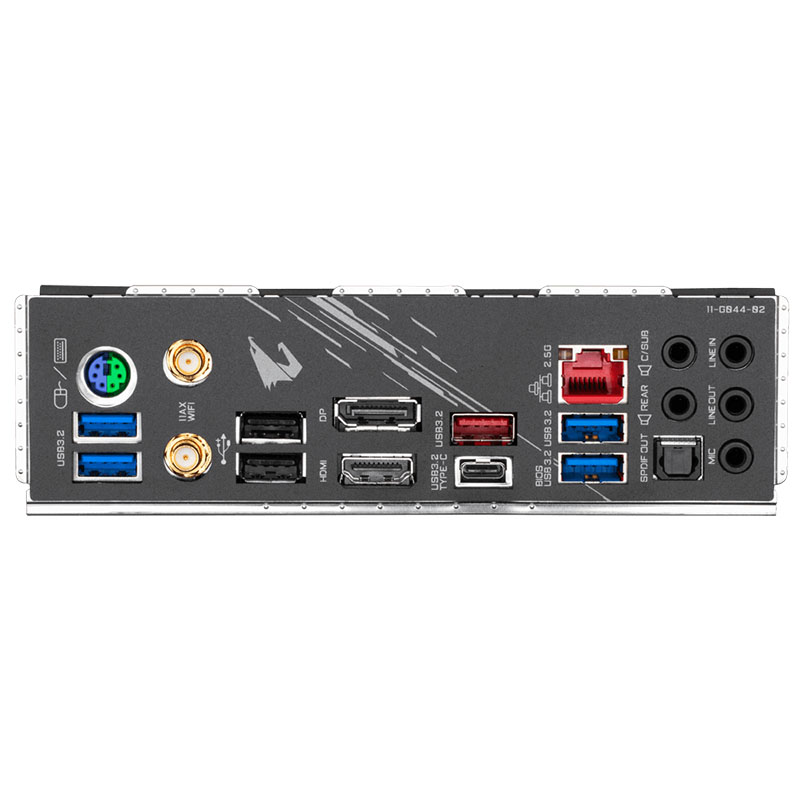

Kết nối ngoài
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x HDMI port
  4. 1 x DisplayPort
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  7. 4 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
Kết nối trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 1 x Q-Flash Plus button
  9. 6 x SATA 6Gb/s connectors
  10. 2 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
Kích thước ATX Form Factor; 30.5cm x 24.4cm



  • Bảo hành 3 năm
CPU Socket

Intel 1200
