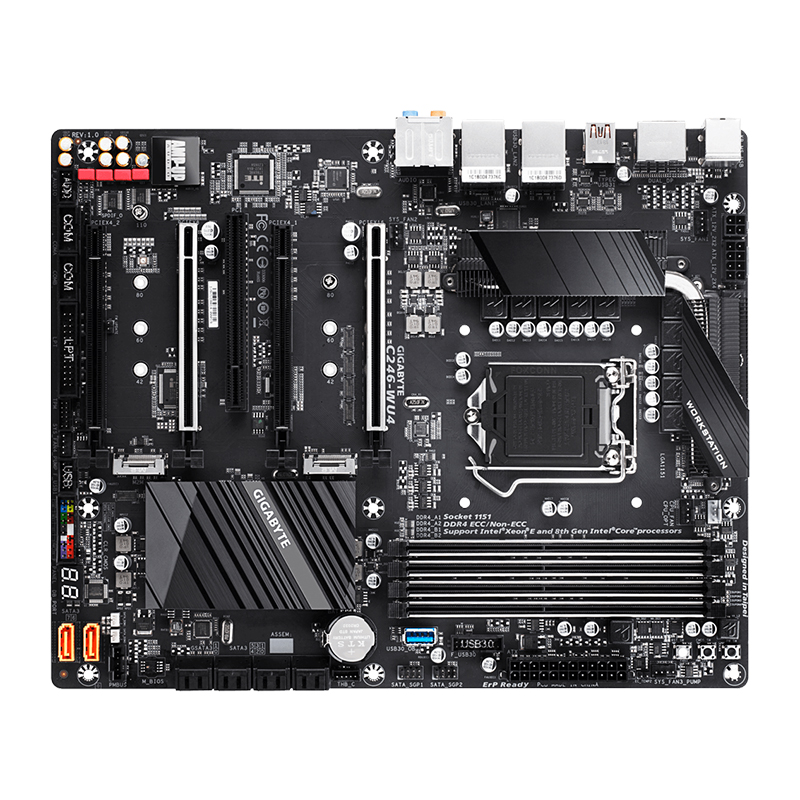

GIGABYTE C246-WU4 Server Workstation Mainboard

1. Intel^® Xeon^® E series processors
2. 9th and 8th Generation Intel^® Core™ processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors

L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel^® C246 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

1. 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

Maximum shared memory of 1 GB

1. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
   * The PCIEX4_2 slot shares bandwidth with the M2M connector. The PCIEX4_2 slot becomes unavailable when a PCIe SSD is installed in the M2M connector.
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2A)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
3. 8 x SATA 6Gb/s connectors (SATA3 0~7)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-8 Internal Connectors,” for the installation notices for the PCIEX4_2, M.2 and SATA connectors.

ASMedia^® ASM1061 chip:

1. 2 x SATA 6Gb/s connectors (GSATA3 0~1), supporting AHCI mode only

Intel^® Optane™ Memory Ready

1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)

1. Realtek^® ALC1220-VB codec
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

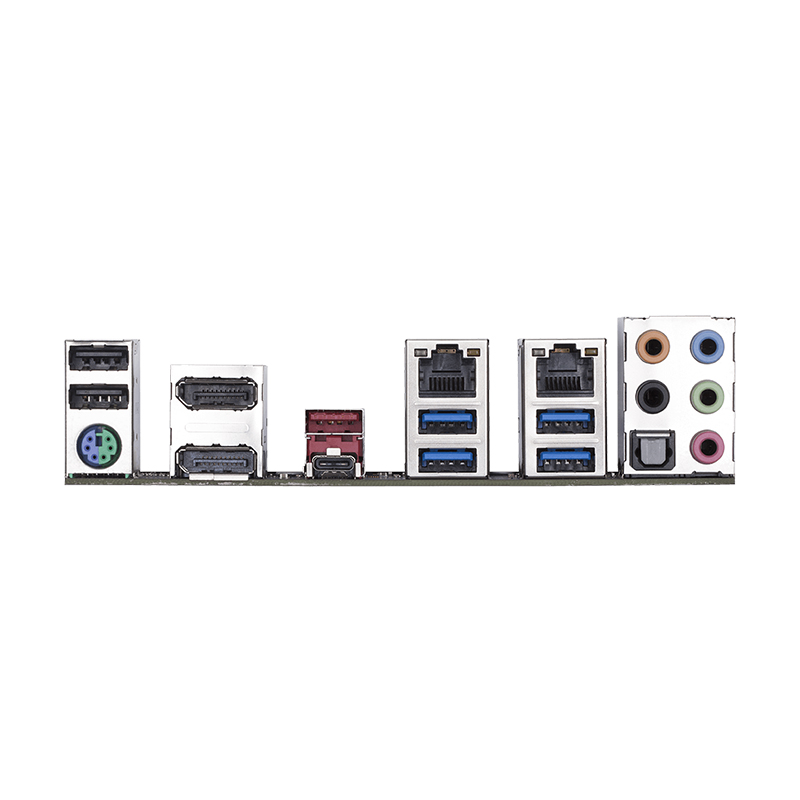

1. 1 x PS/2 keyboard/mouse port
2. 2 x DisplayPorts
3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
4. 1 x USB 3.1 Gen 2 Type-A port (red)
5. 4 x USB 3.1 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 2 x RJ-45 ports
8. 5 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x power information detection header
5. 2 x M.2 Socket 3 connectors
6. 10 x SATA 6Gb/s connectors
7. 2 x SATA power headers
8. 2 x SATA detection headers
9. 1 x CPU fan header
10. 1 x water cooling CPU fan header
11. 2 x system fan headers
12. 2 x system fan/water cooling pump headers
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB 3.1 Gen 1 port (USB30_OB)
16. 1 x USB 3.1 Gen 1 header
17. 1 x USB 2.0/1.1 header
18. 1 x S/PDIF Out header
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
21. 1 x parallel port header
22. 2 x serial port headers
23. 2 x temperature sensor headers
24. 1 x power button
25. 1 x reset button
26. 1 x Clear CMOS button
27. 1 x Clear CMOS jumper

1. ATX Form Factor; 30.5cm x 24.4cm
