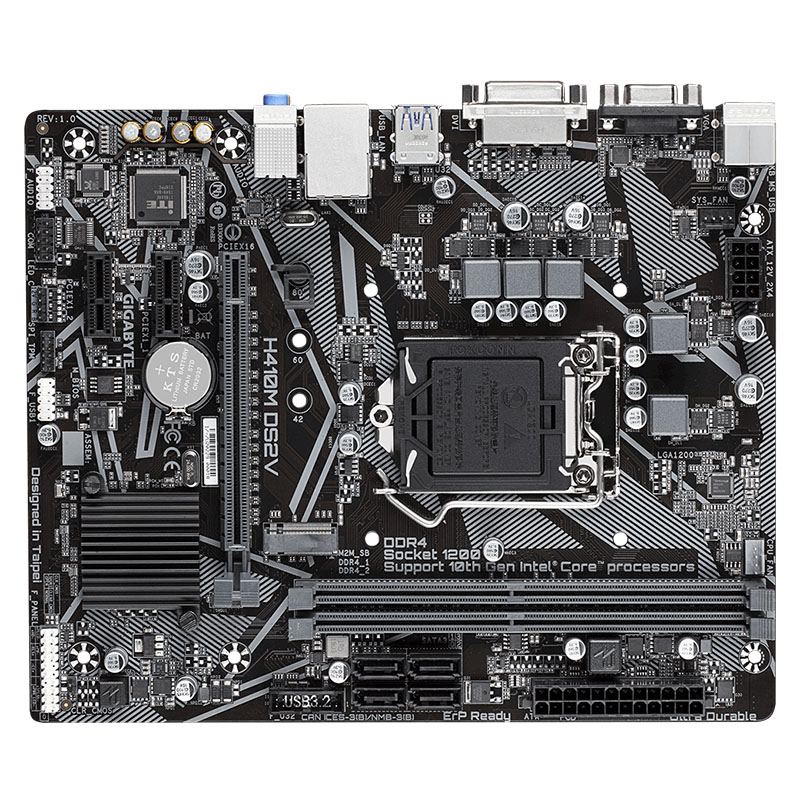

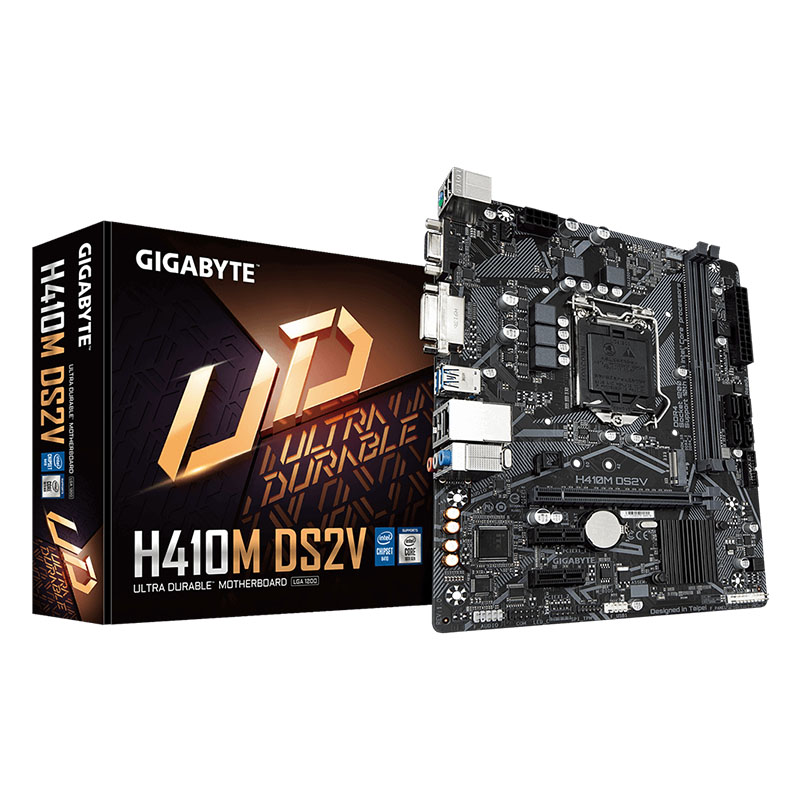

GIGABYTE H410M DS2V Mainboard

1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU

1. Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 512 MB

1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slot
   (The PCI Express slots conform to PCI Express 3.0 standard.)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
2. 4 x SATA 6Gb/s connectors
   * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

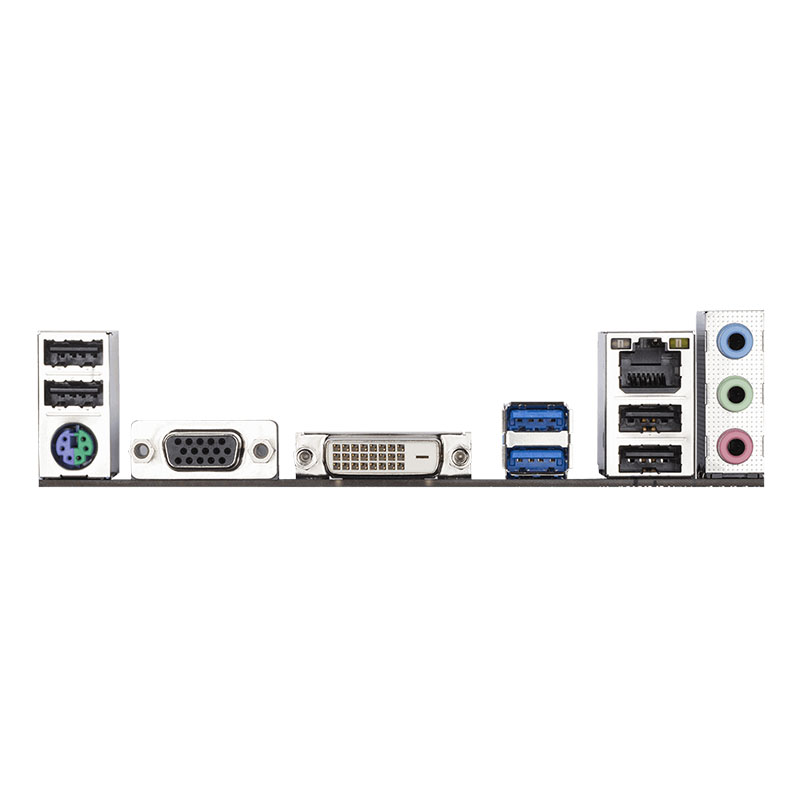

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 4 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper
